Description

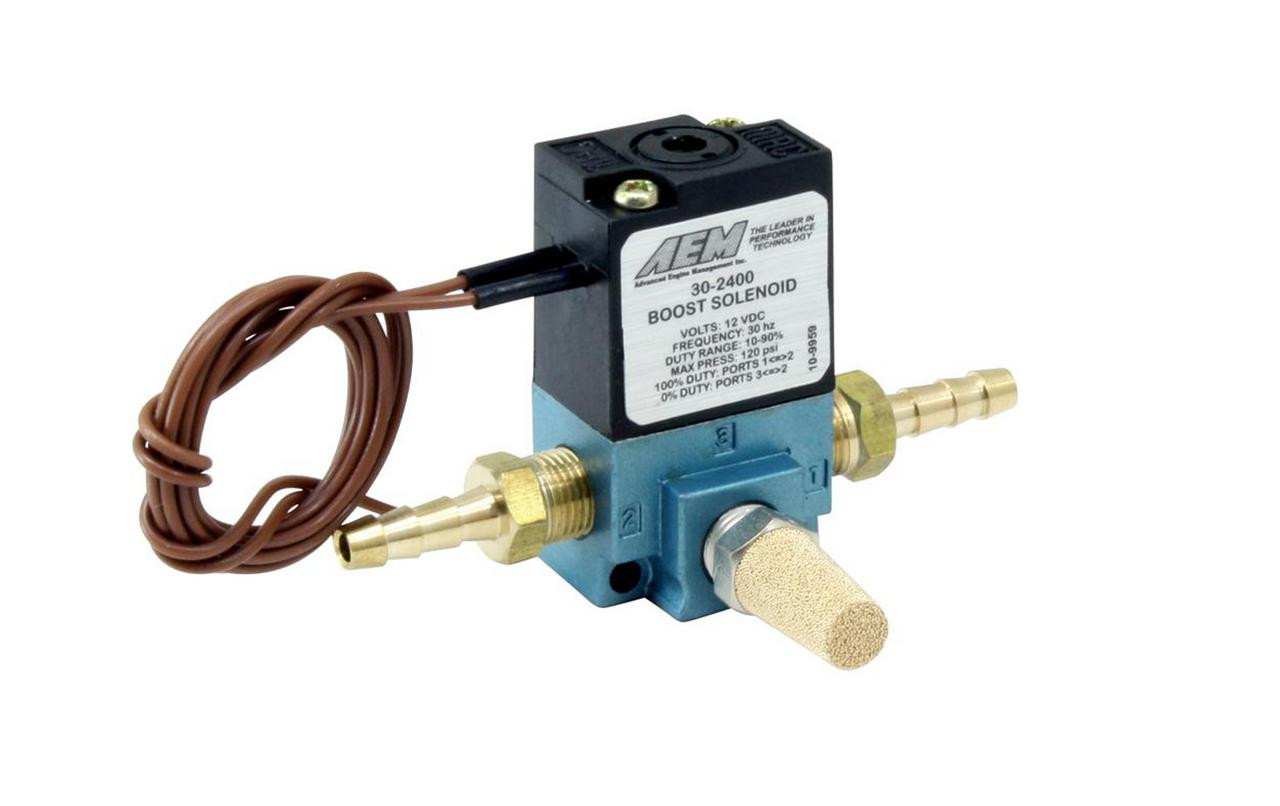

The model 30-2400 Boost Control Solenoid is specially modified for use in high boost automotive systems. The kit includes all the necessary fittings for either an internal or external wastegate.
The 30-2400 Kit Contains:
- 1x Fast Response Solenoid
- 1x Connector Assembly
- 1x 1/8” NPT Sintered Muffler
- 2x 1/8” NPT to 3/16” Hose Barb Adapters
Operating Voltage: 12VDC
Operating Frequency: 31hz
Duty Range: 10 to 90%
Max Pressure: 120 PSI
Electrical Connection: Polarity is unimportant. Hook one wire to switched 12 Volts and the other to the AEM EMS’s PW2 output or the driving devices boost control line.
NOTE: on the SRT4 EMS 30-1510 PW2 outputs +12V. Hook up one wire to PW2 and one wire to ground. If you are not sure please refer to your EMS instructions/pin out sheet and verified the polarity output on PW2. When energized, ports 1 & 2 are connected, when de-energized, ports 2 & 3 are connected. The port numbers are clearly noted on the solenoid body.
